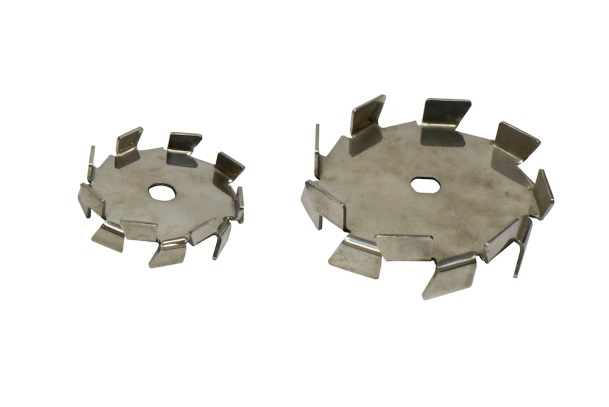

Disperser Blade

The Disperser Blade provides mixing by generating high shear levels. This design is most commonly used in Ink Industry, applications where the high shear levels are needed to prevent clumping. The Disperser Blade is suggested for use in wetting out powders, dispersing fine solids, and creating emulsions. This impeller can be fabricated to fit almost any shaft diameter and comes standard in 316 Stainless Steel, but 304 Stainless Steel versions are also available.

High Shear Mixer

The Batch High Shear Mixer design consists of a single stage four-blade rotor that turns at high speed within a stationary stator. As the rotating blades pass each opening in the stator, they mechanically shear particles and droplets, and expel material at high velocity into the surrounding mix, creating intense hydraulic shear. As fast as material is expelled, more is drawn into the bottom of the rotor/stator generator, which promotes continuous flow and fast mixing.
